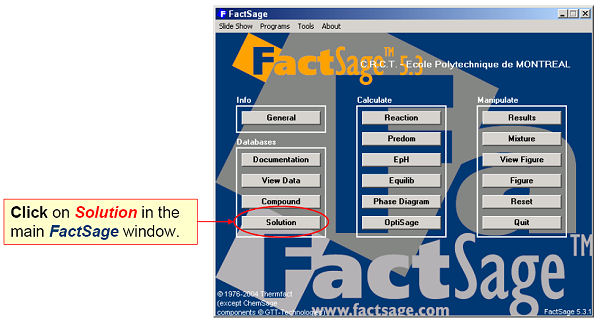

Click on Download Solution Slide Show (pdf presentation - 42 pages) for detailed information on the Solution Module.

The Solution module is used to enter, edit, list and store non-ideal mixing properties in your private solution databases.

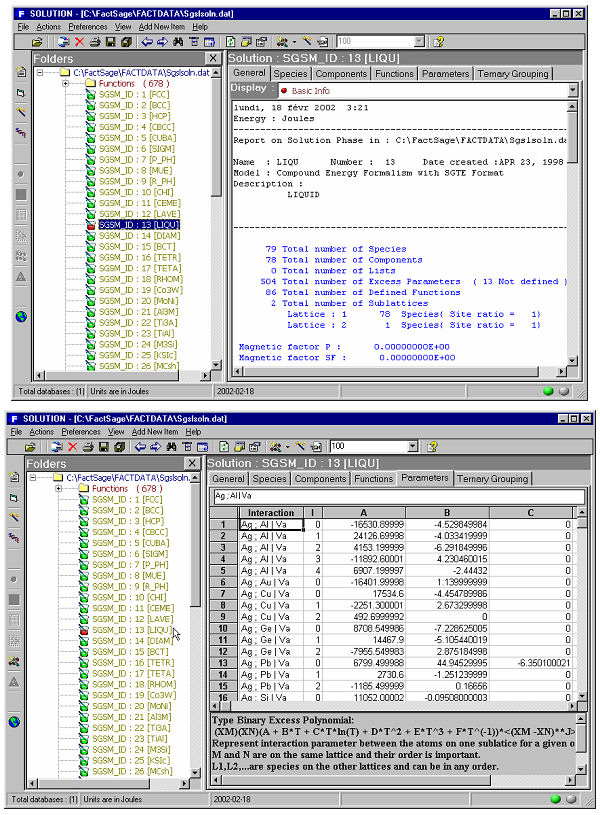

For example, Fig. 2 is a partial listing of the phases stored in the SGTE alloy solution database, including general information on the liquid phase and its parameters.

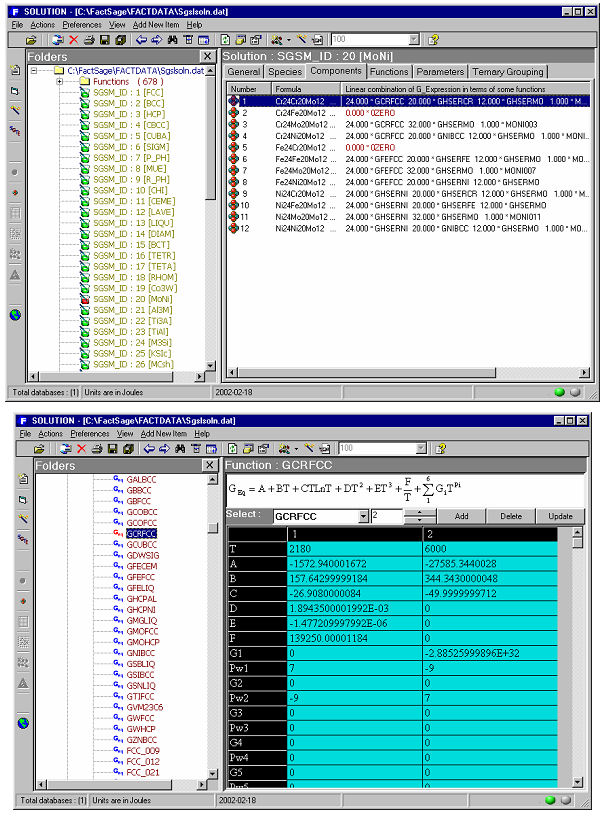

Fig. 3 displays the components of the MoNi Delta phase together with a summary of functions and the contents of the GCRFCC function.

Fig. 1 - Solution Module Fig. 2 - Solution Module - SGTE alloy database. Top: listing the solution phases. Bottom: displaying the parameters of the liquid phase. Fig. 3 - Solution Module - SGTE alloy database. Top: displaying the components of the MoNi_Delta phase. Bottom: displaying the contents of the GCRFCC function.
